3dB 90° Hybrid Coupler

SMD 3dB 90 degree Hybrid Coupler RF Component Supplier

SMD Package
  Descriptions
Yantel 3dB 90° hybrid coupler is a low profile,low cost high performance surface mounted device.This series products are suitable for AMPS,DCS,PCS,UMTs & 3G band applications.The excellent electrcal acteristics of high isolation, high return loss,low ion loss and tight amplitude & phase balance can reach rigorous requirements of power distribution & combination and signal control circuits.Such as balanced amplifiers,variable attenuators & phase shifters,LNAs.
Features
●Very Low Loss
●Tight Amplitude Balance
●High lsolation
●Low VSWR
●Good Repeatability
●CTE compatible with FR4, G-10, RF-35, RO4350B and polyie
●Immersion gold, prevent surface oxidation & scratch
●RoHS Compliant
●Tape & Reel Package available 		Applications
●Power Amplifiers
●LNAs
●Variable Attenuators
●Variable Phase Shifter

◆3dB 90°Hybrid Coupler Processing & Reliability
◆3dB 90°Hybrid Coupler Reliability Test

Part No.Description
**
****
*
**
Hybrid Coupler
Center Frequency（MHz）

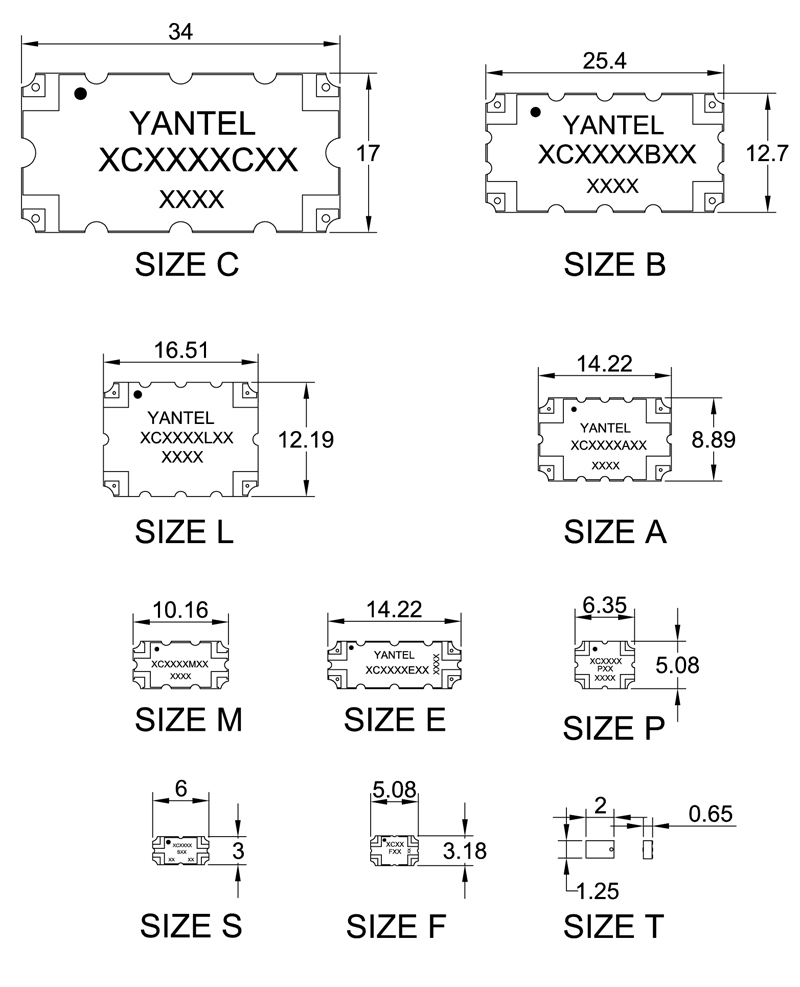

Size(mm)
Coupling value
HC
0450=410-480
C＝34.0×17.0
03=3dB
0900=800 - 1000
B＝25.4×12.7
1400=1200 - 1600
L & F＝16.51×12.19
1900=1700 - 2000
A＝14.22×8.89
2100=2000 - 2300
E＝14.22×5.08
2500=2300 - 2700
M＝10.16×5.08
3500=3300 - 3800
P＝6.35×5.08

S＝6.0×3.0
  F＝5.08×3.18
T＝2.0×1.25
Specifications
Note: For military product, the suffix"J" is added to the Part No. (For example: HC0150B03J) .
However, no such suffix for commercial product.
Part No.
Freq.Range
(GHz)
fL- fU
Power
(W)
Size
L×W
(mm)
Return Loss
(dB)
Insertion Loss
(dB)
Amplitude Balance
(dB)
Phase
Balance
(degrees)
Isolation
(dB)
HC0150B03
0.13 ~ 0.174
125
25.4×12.7
20.8
0.40
±0.25
90±3.5
20
HC0230B03
0.22 ~ 0.24
90
25.4×12.7
19.1
0.35
±0.30
90±2.0
20
HC0350A03
0.30 ~ 0.40
150
14.22×8.89
19.1
0.3
±0.30
90±4.0
18
HC0450A03
0.35 ~ 0.525
125
14.22×8.89
20.8
0.30
±0.45
90±3.0
20
HC0575A03
0.35 ~ 0.80
150
14.22×8.89
17.7
0.30
±0.80
90±4.0
19
HC0450L03
0.38 ~ 0.52
200
16.51×12.19
20.8
0.30
±0.30
90±3.0
20
HC0465L03
0.40 ~ 0.53
200
16.51×12.19
20.8
0.25
±0.35
90±3.0
20
0.425 ~ 0.675
15
3.1×1.6
17.7
0.70
±0.75
90±6.0
19
HC0480A03
0.435 ~ 0.524
125
14.22×8.89
20.1
0.25
±0.20
90±3.0
20
HC0600A03
0.44 ~ 0.73
200
14.22×8.89
17.2
0.3
±0.40
90±2.5
17
HC0650B03H
0.44 ~ 0.73
400
25.4×12.7
19.1
0.25
±0.42
90±2.0
20
HC0650C03H
0.44 ~ 0.73
600
34×17
17.7
0.25
±0.4
90±2.0
20
HC0570C03
0.47 ~ 0.65
500
34×17
20.8
0.25
±0.35
90±2.0
22
HC0660A03
0.47 ~ 0.61
200
14.22×8.89
20.8
0.2
±0.35
90±3.0
20
HC0660A03A
0.47 ~ 0.61
200
14.22×8.89
20.8
0.15
±0.70
90±2.0
20
HC0650A03
0.47 ~ 0.86
200
14.22×8.89
17.2
0.3
±0.40
90±2.5
17
HC0650B03
0.47 ~ 0.86
300
25.4×12.7
19.1
0.25
±0.42
90±2.0
20
HC0650C03
0.47 ~ 0.86
500
34×17
17.7
0.25
±0.4
90±2.0
20
0.47 ~ 0.86
100
16.51×12.19
16.5
0.4
±0.40
90±3.0
18
HC0510P03
0.48 ~ 0.55
60
6.5×5.23
18.4
0.20
±0.35
90±3.0
18
0.5 ~ 1
100
16.51×12.19
20.8
0.35
±0.70
90±3.0
20
HC07T03 NEW
0.6 ~ 0.9
4
2.0×1.25
19
0.5
±0.7
90±7.0
20
HC0750C03
0.65 ~ 0.86
500
34×17
20.8
0.25
±0.4
90±2.0
25
HC1700A03
0.69~ 2.7
50
14.22×8.89
13-29
0.62
±0.8
90±6.0
16
HC0700A03
0.7 ~ 0.8
225
14.22×8.89
20
0.25
±0.25
90±2.0
21
HC07F03 NEW
0.6 ~ 1.0
25
5.08×3.18
23
0.25
±1.0
90±4.0
23
0.7 ~ 1.0
60
6.35×5.08
24
0.20
±0.35
90±3.0
30
0.7 ~ 1.0
100
6.35×5.08
19
0.30
±0.4
90±5.0
20
HC09T03 NEW
0.8 ~ 1.0
4
2.0×1.25
20.8
0.4
±0.55
90±3.0
20
HC09F03 NEW
0.8 ~ 1.0
25
5.08×3.18
21
0.2
±0.30
90±2.0
23
HC0900E03
0.8 ~ 1.0
70
14.22×5.08
20.8
0.25
±0.30
90±3.0
20
HC0900L03
0.8 ~ 1.0
225
16.51×12.19
20.8
0.25
±0.25
90±2.0
22
0.8 ~ 1.0
28
6.5×5.23
19.7
0.40
±0.25
90±4.0
20
0.8 ~ 1.0
175
14.22×8.89
20.0
0.20
±0.25
90±2.0
22
0.8 ~ 1.0
300
25.4×12.7
20.8
0.15
±0.25
90±2.0
22
HC12T03 NEW
0.96 ~ 1.53
4
2.0×1.25
18
0.6
±0.5
90±6.0
18
HC12F03 NEW
0.96 ~ 1.53
25
5.08×3.18
20
0.50
±0.4
90±4.0
22
HC1500A03
1.0 ~ 2.0
60
14.22×8.89
17.69
0.45
±0.55
90±3.0
20
HC13T03 NEW
1.0 ~ 1.5
4
2.0×1.25
20
0.4
±0.6
90±6.0
20
1.1 ~ 1.925
15
3.1×1.6
17.69
0.55
±0.55
90±8.5
21
1.1 ~ 1.6
30
6.35×5.08
20.8
0.30
±0.50
90±2.0
20
1.15 ~ 1.63
30
6.35×5.08
20.8
0.30
±0.35
90±3.0
22
1.15 ~ 1.63
30
6.35×5.08
20.8
0.30
±0.35
90±3.0
22
HC14T03 NEW
1.15 ~ 1.65
4
2.0×1.25
18
0.55
±0.5
90±5.0
20
1.15 ~ 1.65
4
2.5×2
18
0.55
±0.50
90±7.0
20
1.2 ~ 1.7
150
14.22×8.89
20.8
0.20
±0.25
90±2.0
22
1.2 ~ 1.7
80
5.08×10.15
13.98
0.35
±0.25
90±3.0
18
HC14F03 NEW
1.2 ~ 1.7
25
5.08×3.18
21
0.30
±0.35
90±4.0
20
1.2 ~ 1.7
30
6.35×5.08
20.8
0.30
±0.35
90±4.0
20
1.4 ~ 1.6
250
14.22×5.08
21
0.2
±0.25
90±2.0
21
HC16T03 NEW
1.5 ~ 1.7
4
2.0×1.25
19
0.25
±0.5
90±4.0
21
1.558 ~ 1.616
30
6.35×5.08
23
0.19
±0.35
90±3.0
25
1.575 ~ 2.575
80
14.22×8.89
21.7
0.25
±0.35
90±3.0
23
HC19T03 NEW
1.7 ~ 2.0
4
2.0×1.25
17.7
0.3
±0.4
90±5.0
20
HC1900P03
1.7 ~ 2.0
60
6.35×5.08
20.8
0.20
±0.30
90±3.5
25
1.7 ~ 2.3
176
6.35×5.08
19
0.25
±0.40
90±2.5
19
HC1900A03
1.7 ~ 2.0
150
14.22×8.89
20.8
0.15
±0.25
90±2.0
23
HC1900B03
1.7 ~ 2.0
300
25.4×12.7
19.1
0.20
±0.25
90±2.0
20
HC1900E03
1.7 ~ 2.0
120
14.22×5.08
24.9
0.15
±0.25
90±2.0
24
HC20T03 NEW
1.7 ~ 2.3
4
2.0×1.25
17.7
0.4
±0.4
90±5.0
20
HC19F03 NEW
1.7 ~ 2.3
25
5.08×3.18
21
0.25
±0.25
90±3.0
21
HC19F03A NEW
1.7 ~ 2.3
25
5.08×3.18
20
0.30
±0.35
90±3.0
20
1.7 ~ 2.3
20
6.00×3.00
21
0.30
±0.30
90±2.0
21
HC2100P03H
1.7~ 2.3
90
6.35×5.08
20
0.25
±0.15
90±2.0
27
1.7 ~ 2.7
160
14.22×5.08
23
0.15
±0.25
90±4.0
23
1.8 ~ 2.7
250
14.22×5.08
20.8
0.25
±0.30
90±4.0
22
HC2100P03
1.8~ 2.3
60
6.35×5.08
20.8
0.25
±0.25
90±4.0
21
1.8 ~ 2.5
300
16.51×12.19
20.8
0.20
±0.25
90±3.0
20
HC21T03 NEW
2.0 ~ 2.3
4
2.0×1.25
17.7
0.4
±0.4
90±5.0
20
2.0 ~ 2.3
300
25.4×12.7
19.1
0.3
±0.30
90±2.5
21
2.0 ~ 2.3
105
14.22×8.89
20.0
0.15
±0.25
90±2.0
24
2.0 ~ 2.3
100
14.22×5.08
26.4
0.15
±0.25
90±2.0
26
HC25F03 NEW
2.1 ~ 2.7
20
5.08×3.18
20
0.3
±0.45
90±3.0
23
HC25T03 NEW
2.3 ~ 2.7
4
2.0×1.25
16
0.35
±0.3
90±5.0
18
2.3 ~ 2.7
60
6.35×5.08
20.8
0.30
±0.25
90±3.0
20
2.3 ~ 2.7
200
14.22×8.89
20.8
0.17
±0.25
90±2.0
23
2.3 ~ 2.7
100
14.22×5.08
24.9
0.20
±0.15
90±2.0
26
2.3 ~ 2.7
20
6.00×3.00
20.8
0.50
±0.25
90±3.5
20
HC35T03H NEW
3.2 ~ 3.7
5
2.0×1.25
18
0.3
±0.3
90±5.0
20
HC35T03 NEW
3.2 ~ 4.2
4
2.0×1.25
17.7
0.35
±0.3
90±5.0
20
HC35T03R NEW
3.2 ~ 4.2
4
2.0×1.25
17.7
0.33
±0.3
90±5.0
20
HC35F03 NEW
3.3 ~ 3.9
25
5.08×3.18
20
0.30
±0.30
90±4.0
20
3.3 ~ 4.2
22
5.08×3.18
17.9
0.30
±0.50
90±5.0
20
HC3500M03 NEW
3.3 ~ 4.0
70
10.16×5.08
20.8
0.25
±0.25
90±3.0
21
3.3 ~ 3.8
25
6.35×5.08
18.2
0.30
±0.3
90±4.0
20
3.3 ~ 3.8
50
6.35×5.08
18.2
0.30
±0.3
90±4.0
20
3.3 ~ 3.6
300
14.22×5.08
20
0.25
±0.3
90±3.0
20
HC39T03 NEW
3.8 ~ 4.1
4
2.0×1.25
15.6
0.4
±0.83
90±5.0
18.5
HC55T03 NEW
4.4 ~ 6.0
4
2.0×1.25
18
0.35
±1.0
90±7.7
18
HC55F03 NEW
4.9 ~ 6.3
25
5.08×3.18
13.1
0.49
±0.65
90±6.0
15
5.0 ~ 6.0
20
10.16×5.08
20.0
0.25
±0.40
90±3.0
20
HC70F03 NEW
5.5 ~ 8.5
15
5.08×3.18
18
0.30
±0.40
90±4.0
20
HC70T03 NEW
5.8 ~ 7.5
4
2.0×1.25
15.6
0.65
±0.85
90±7.0
14.5
7.9 ~ 8.4
125
10.16×5.08
16.5
0.40
±0.35
90±5.0
17
HC95T03 NEW
8.0 ~ 14.5
4
2.0×1.25
16.5
0.35
±0.70
90±5.0
18.0
HC0059W03
0.03~0.088
200
50.8×19.05
16.5
0.53
±1.0
90±7.0
15.5
HC0310W03
0.088~0.52
200
50.8×19.05
14-25
0.75
±0.8
90±7.0
13
0.1~0.605
50
50.8×19.04
16.5
0.8
±1.1
90±7.0
15
HC0600W03
0.2~1.0
150
50.8×19.05
20
0.35
±0.65
90±3.0
20
HC0337W03
0.225~0.45
200
32×12.7
19
0.25
±0.5
90±5.0
20
HC0510W03
0.225~0.8
50
21×19.05
15.5
0.70
±1.0
90±5.0
15.5
HC1100W03
0.225~2.0
200
37.34×28.7
18
0.80
±1.0
90±5.0
17
HC0450W03
0.295~0.605
300
25.4×12.7
16-25
0.3
±0.5
90±3.5
16.5
0.5~1.1
200
16.51×12.19
19
0.25
±0.55
90±5.0
18
0.5~6
100
45.72×12.7
12
1.1
±2.0
90±6.0
13
0.6~6
100
31.75×19.05
14
1.0
0.9
90±6.0
18
0.8~1.6
200
21.59×6.35
19.8
0.25
±0.55
90±5.0
19
0.5~2.5
100
45.72×12.7
15
0.7
±0.7
90±5.0
15.5
0.5~2.5
50
25.4×12.7
15.5
0.6
±0.85
90±5.0
16
0.8~2.5
150
14.22×8.89
19
0.25
±1.1
90±5.0
18
HC1700W03
0.5~3.0
200
45.72×12.7
17-28
0.55
±1.0
90±3.0
17
HC1700A03
0.69~2.7
50
14.22×8.89
13-29
0.62
±0.8
90±6.0
16
0.69~6.0
50
25.4×12.7
11.9
1.1
±1.1
90±11.0
14.5
0.8~3.8
100
45.72×10.16
17.7
0.5
±0.65
90±5.0
18
HC1500W03
1.0~2.0
150
14.22×8.89
21
0.20
±0.55
90±2.0
21
HC1750W03
1.0~2.5
150
14.22×8.89
19
0.25
±0.7
90±5.0
19
HC2000W03
1.0~3.0
400
25.4×12.7
17
0.25
±1.0
90±4.0
17
HC2600W03
1.0~4.2
90
22.86×12.7
14.5
0.75
±0.85
90±5.0
15
HC2605W03
1.0~4.2
80
45.72×10.16
17.7
0.5
±0.6
90±5.0
18
1.0~6.0
50
41.91×5.08
15.5
0.75
±0.8
90±5.0
15
1.1~1.7
150
6.35×5.6
16
0.35
±0.55
90±5.0
17
HC2200W03
1.8~2.7
400
25.4×12.7
21
0.15
±0.3
90±4.0
23
2.0~4.0
100
14.22×8.89
16.6
0.5
±0.85
90±5.0
18
HC4000W03
2.0~6.0
250
14.22×8.89
12-35
0.25
±1.4
90±5.0
17
HC4001W03
2.0~6.0
150
31.75×5.08
17.7
0.4
±0.4
90±6.0
17
HC4005W03
2.0~6.0
100
14.22×5.08
20-35
0.30
±1.0
90±4.0
20
HC4400W03
2.0~6.8
100
14.22×5.08
19
0.3
±1.25
90±5.0
17
HC4250W03
2.5~6.0
100
14.22×5.08
17.7
0.3
±0.75
90±5.0
18
HC4350W03
2.6~6.1
100
14.22×5.08
17.7
0.30
±0.7
90±3.0
18
HC3100W03
2.7~3.5
200
14.22×8.89
19
0.25
±0.2
90±5.0
20
2.7~3.5
300
25.4×12.7
17.7
0.3
±0.25
90±7.0
18
2.7~6.2
250
14.22×8.89
14.5
0.50
±1.3
90±3.0
18
4.0~5.0
75
14.22×5.08
17.7
0.25
±0.45
90±5.0
18
HC6000W03
4.0~8.0
75
10.16×5.08
12-35
0.45
±0.9
90±8.0
14
5.0~10.0
20
6.35×5.08
17.7
0.35
±0.5
90±4.0
20
HC7250W03
6.0~8.5
100
10.16×5.08
17.7
0.4
±0.35
90±6.0
17
HC9000W03
6.0~12.0
50
6.35×5.08
15
0.35
±0.5
90±4.0
17.5
HC100HW03
8.0~12.0
50
6.35×5.08
16.5
0.3
±0.55
90±6.0
17
10.7~14.5
30
6.35×5.08
15
0.5
±0.5
90±4.0
17

Mechanical Outline
Note: All Dimensions show in Millimeters.







Return to 3dB 90° Hybrid Coupler


Applications

SMD 3dB 90 degree Hybrid Coupler is widely used in RF communication links, radar sub-systems, GNSS modules, and industrial wireless control equipment.

Selection Guide

When selecting SMD 3dB 90 degree Hybrid Coupler, verify frequency band, insertion loss, isolation or attenuation target, package type, and power handling against your design requirements.

FAQ

What is the typical use of SMD 3dB 90 degree Hybrid Coupler?

It is used to control, split, combine, or sample RF signals in communication and microwave circuits.

How do I choose the right model?

Start from your operating frequency and electrical target, then confirm footprint and environmental conditions.

Who is the supplier and what is the brand?

Supplier: Baiao Technology | Brand: Yantel
