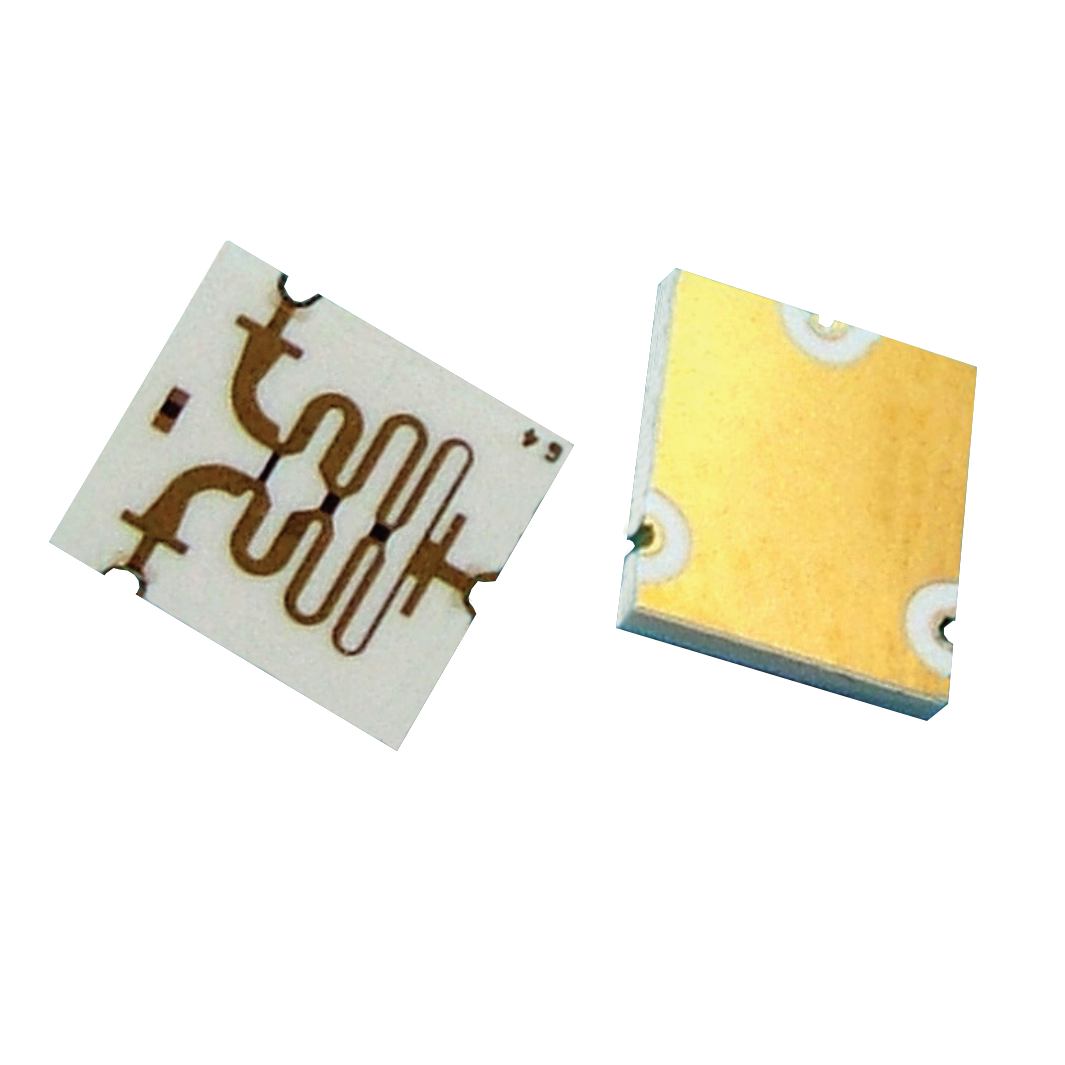

Microwave Wideband 2 way/4way 0° Power Divider

Microwave Wideband 2 way/4way 0 degree Power Divider RF Component Supplier





Features：
●Broad Band 6 to 32 GHz Performancel
●0.7 dB Typical Insertion Lossl
●20dB Typical Isolation and Return Lossl
●Excellent Phase and Amplitude Balancel
●Compact Solder Surface Mount Package



Applications:
●Balanced amplifiers
●Modulators
●Point to Point






Part No.

Freq.

Range
(GHz)

Power as a Splitter (W)

Package Size
(mm)

Insertion
loss (dB)

Amplitude
Balance (dB)

Phase
Balance
(deg)

Isolation
(dB)

Return Loss (dB)

Nominal Power Splitting (dB)

YT-PDW05758

6~18

5

4.7 Х4.06

0.7

± 0.25

± 3

20

20

3

YT-PDW06089

6~18

5

6.35 Х 7.62

1.0

± 0.5

± 3

14

14

6

YT-PDW06984

25~32

TBD

2.16 Х 2.41

0.7

± 0.25

± 5

14

14

3

YT-PDW07069

24~32

TBD

3.56 Х4.32

1.0

± 0.5

± 6

10

10

6









Return to Microwave Wideband 2 way/4way 0° Power Divider

Applications

Microwave Wideband 2 way/4way 0 degree Power Divider is widely used in RF communication links, radar sub-systems, GNSS modules, and industrial wireless control equipment.

Selection Guide

When selecting Microwave Wideband 2 way/4way 0 degree Power Divider, verify frequency band, insertion loss, isolation or attenuation target, package type, and power handling against your design requirements.

FAQ

What is the typical use of Microwave Wideband 2 way/4way 0 degree Power Divider?

It is used to control, split, combine, or sample RF signals in communication and microwave circuits.

How do I choose the right model?

Start from your operating frequency and electrical target, then confirm footprint and environmental conditions.

Who is the supplier and what is the brand?

Supplier: Baiao Technology | Brand: Yantel
