3dB 90° Hybrid Coupler

F type 3dB 90 degree Hybrid Coupler RF Component Supplier

SMD Package
  Descriptions
Yantel 3dB 90° hybrid coupler is a low profile,low cost high performance surface mounted device.This series products are suitable for AMPS,DCS,PCS,UMTs & 3G band applications.The excellent electrcal acteristics of high isolation, high return loss,low ion loss and tight amplitude & phase balance can reach rigorous requirements of power distribution & combination and signal control circuits.Such as balanced amplifiers,variable attenuators & phase shifters,LNAs.
Features
●Very Low Loss
●Tight Amplitude Balance
●High lsolation
●Low VSWR
●Good Repeatability
●CTE compatible with FR4, G-10, RF-35, RO4350B and polyie
●Immersion gold, prevent surface oxidation & scratch
●RoHS Compliant
●Tape & Reel Package available 		Applications
●Power Amplifiers
●LNAs
●Variable Attenuators
●Variable Phase Shifter

◆3dB 90°Hybrid Coupler Processing & Reliability
◆3dB 90°Hybrid Coupler Reliability Test

Part No.Description
**
****
*
**
Hybrid Coupler
Center Frequency（MHz）
Size(mm)
Coupling value
HC
0450=410-480

03=3dB
0900=800 - 1000

1400=1200 - 1600

1900=1700 - 2000

2100=2000 - 2300
F＝5.08×3.18
2500=2300 - 2700

3500=3300 - 3800


Specifications
Note: For military product, the suffix"J" is added to the Part No. (For example: HC0150B03J) .
However, no such suffix for commercial product.
Part No.
Freq.Range
(GHz)
fL- fU
Power
(W)
Size
L×W
(mm)
Return Loss
(dB)
Insertion Loss
(dB)
Amplitude Balance
(dB)
Phase
Balance
(degrees)
Isolation
(dB)
HC07F03 New
0.6 ~ 1
25
5.08×3.18
23
0.25
±1.0
90±4.0
23
HC09F03 New
0.8 ~ 1
25
5.08×3.18
21
0.2
±0.30
90±2.0
23
HC12F03 New
0.96~1.53
25
5.08×3.18
20
0.5
±0.80
90±4.0
20
HC14F03 New
1.2 ~ 1.7
25
5.08×3.18
21
0.30
±0.35
90±4.0
22
HC19F03 New
1.7 ~ 2.3
25
5.08×3.18
21
0.25
±0.25
90±3.0
21
HC19F03A NEW
1.7 ~ 2.3
25
5.08×3.18
20
0.30
±0.35
90±3.0
20
HC25F03 New
2.1 ~ 2.7
20
5.08×3.18
20
0.30
±0.45
90±3.0
23
HC35F03 New
3.3 ~ 3.9
25
5.08×3.18
20
0.30
±0.30
90±4.0
20
HC35F03A NEW
3.3 ~ 4.2
22
5.08×3.18
17.9
0.30
±0.50
90±5.0
20
HC55F03 New
4.9 ~ 6.3
25
5.08×3.18
13.1
0.49
±0.65
90±6.0
15
HC70F03 New
5.5 ~ 8.5
15
5.08×3.18
18
0.30
±0.40
90±4.0
20

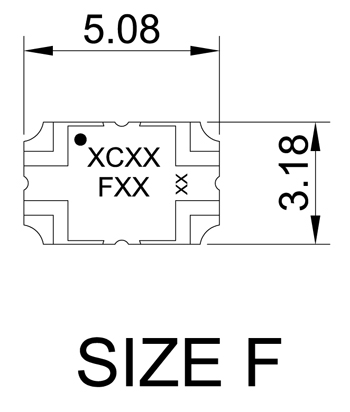

Mechanical Outline
Note: All Dimensions show in Millimeters.







Return to 3dB 90° Hybrid Coupler


Applications

F type 3dB 90 degree Hybrid Coupler is widely used in RF communication links, radar sub-systems, GNSS modules, and industrial wireless control equipment.

Selection Guide

When selecting F type 3dB 90 degree Hybrid Coupler, verify frequency band, insertion loss, isolation or attenuation target, package type, and power handling against your design requirements.

FAQ

What is the typical use of F type 3dB 90 degree Hybrid Coupler?

It is used to control, split, combine, or sample RF signals in communication and microwave circuits.

How do I choose the right model?

Start from your operating frequency and electrical target, then confirm footprint and environmental conditions.

Who is the supplier and what is the brand?

Supplier: Baiao Technology | Brand: Yantel
