Crossover

Crossover RF Component Supplier

SMD Package

  Descriptions

This's a low profile crossover to intersect an RF and DC circuit trace in an easy to use surface mount package designed for frequencies up to 3.6 GHz.


Features
●Low Loss
●High lsolation
●Low VSWR
●RoHS Compliant
●Good Repeatability
●CTE compatible with FR4, G-10, RF-35, RO4350B and polyie
●Immersion gold, prevent surface oxidation & scratch
●Tape & Reel Package available




Specifications

Part No.
Freq.Range
(GHz)
fL- fU
Power
(W)
Size
L×W
(mm)
Return Loss
(dB)
Insertion Loss
(dB)
Isolation
(dB)
CR01 New
DC ~ 3.6
20
5.08×5.08
15
0.10
\
CR03 New
DC ~ 6.0
20
3.2×1.6
20
0.15
\
CR07 New
DC ~ 3.6
24
5.08×5.08
15
0.15
40

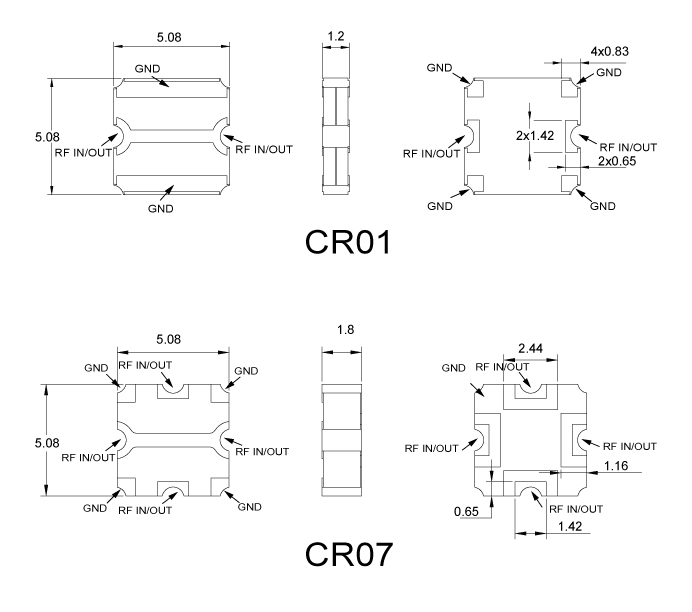

Mechanical Outline
Note: All Dimensions show in Millimeters.







Return to Crossover


Applications

Crossover is widely used in RF communication links, radar sub-systems, GNSS modules, and industrial wireless control equipment.

Selection Guide

When selecting Crossover, verify frequency band, insertion loss, isolation or attenuation target, package type, and power handling against your design requirements.
